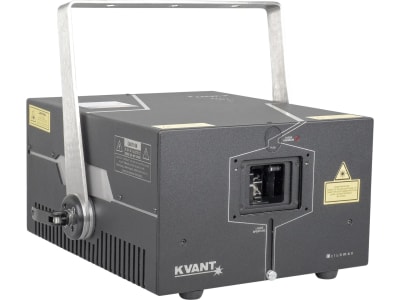

Kvant Clubmax 40 FB4
A lo largo de los años, miles de láseres Clubmax FB4 encontraron clientes en todo el mundo. Los sistemas Clubmax FB4 tienen una gran reputación y mantienen bien su precio. Lo que ofrecemos hoy es la tercera generación de nuestro éxito de ventas de todos los tiempos que elaboramos a la perfección. Los láseres Clubmax FB4 están disponibles en el rango de 3 a 40W.
Los nuevos proyectores láser Clubmax de 24 vatios y 40 vatios, de formato pequeño pero resistentes y de alta potencia, vienen equipados de fábrica con características modernas que le permiten ofrecer pantallas láser de clase mundial, de manera efectiva y eficiente.
Los Clubmax 24 y 40 FB4 son adecuados para exhibiciones aéreas a gran escala en interiores y exteriores en conciertos, festivales y giras.
Este modelo viene equipado de fábrica con filtros dicroicos motorizados para una alineación del haz fácil y rápida.
Specifications
| Source | Type: | Semiconductor laser diode | Full-colour RGB laser projector |
| Suitability: | Large-scale outdoor laser displays [atmospheric, abstract, basic text] |
| System control: | FB4-SK [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console or Autoplay] |
| Compliant with: | EN 60825-1 [tested by TÜV SÜD], FDA |
| Weight [kg]: | 20 |
| Size [WxHxD, mm]: | 339 x 168 x 413 [Technical Drawings are in SUPPORT section of this page] |
| Guaranteed opt. output [W]: | 36.7 |
| R | G | B [W]: | 8.5 | 11.5 | 20 [*see note A below] |
| Wavelengths [nm, ±5nm]: | 638 | 525 | 455 |
| Beam size [mm]: | 7 x 7 |
| Beam divergence [mrad]: | <1.1 [full angle, averaged value, *see note B below] |
| Modulation [kHz] | type: | 100 | analogue |
| X-Y scanners: | 30 Kpps @ 8° [more options in UPGRADES] |
| Power requirements [V] | Input: | 100-230/50-60Hz | Neutrik powerCON TRUE1 |
| Max. power consumption [VA]: | 1200 |
| Operation temperature [°C]: | 10-40 |
| Included in the set: | Heavy-duty flight case, 1.5M power lead, 10M Ethernet rj45 signal cable, E-STOP remote with 10M 3-pin XLR cable, set of 4 safety keys, interlock connector [for the USA only], USB memory stick with the user manual. Pangolin QuickShow laser control and creation software is available for FREE download. |
| HW features: | Motorised Dichroic Filters. All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface. Scanning system overload protection. Optical bench integration slot. |
| Laser safety features: | Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button. |
