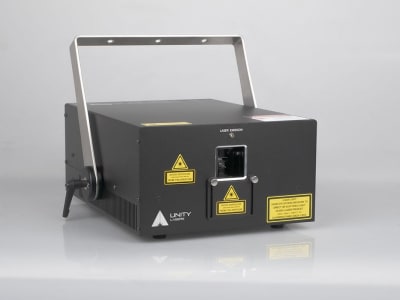

UNITY RAW 10 LASER 10 Watts RGB
$ 3.999.000
| Product Name: | RAW 10 |
| Type: | full-color, semiconductor diode laser system |
| Guaranteed optical output: | >10W |
| Suitable for: | indoor/small outdoor laser shows and laser graphic displays |
| Control signal: | ILDA |
| Scanning system: | 30,000 points per second @ 8° |
| Safety: | fully complies with the latest EN 60825-1, and FDA regulations |
| Weight: | 12kg |
| Package includes: | power cord, 10M ILDA signal cable, E-STOP box with 10M cable, set of 4 safety keys, 5-pin interlock bypass plug, user guide. |
| R | G | B [mW]: | 2700 | 2700 | 4800 |
| Beam size [mm]: | 5 x 3 |
| Beam divergence: | <1.1mrad [full angle] |
| Modulation: | analog, up to 50kHz |
| Power requirements: | 100-230V/50Hz |
| Consumption: | max. 350W |
| Operation temperature: | 10-40 °C |
| Ingress protection rating: | IP20 |
| System features: | All the adjustments such as power output of each colour, X & Y axes invert, X & Y size and position, etc. Scanning system protection, daisy chain of emergency STOP signal for multiple system "one-hit" operation. |
| Laser safety features: | Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate. |
| Notice: | *Due to Advanced Optical Correction technology used in our laser systems the optical power output of each laser colour within the system may slightly differ from the specification of respective laser module(s) installed. This does not affect the total guaranteed power output. |
| Dimensions [mm]: | Length:340 Width: 247 Height:148 |
